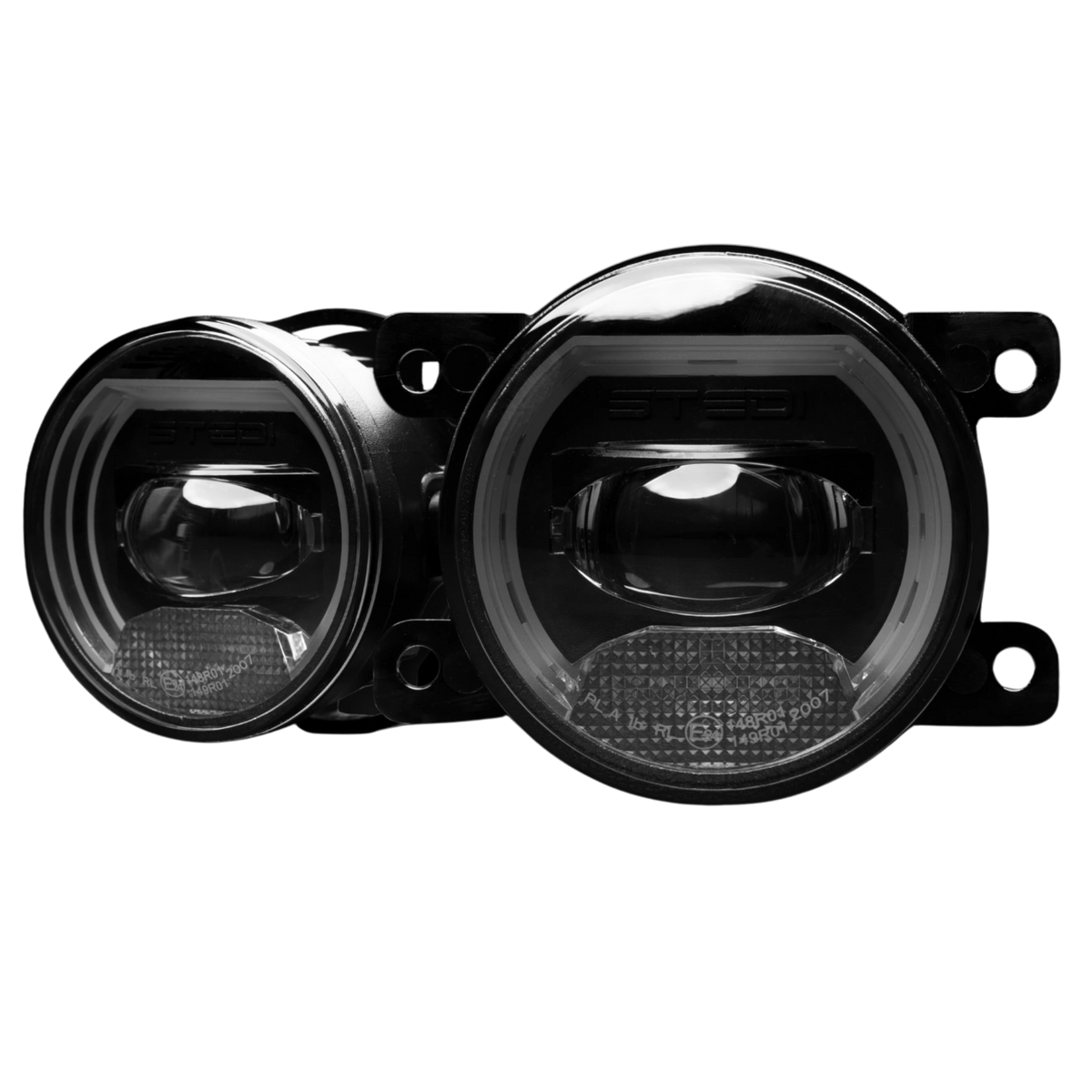

Stedi Universal DRL Type A LED Fog Light Kit
STEDI’s DRL LED Fog Lights with integrated indicator and parker light function are a high-end, premium solution for those looking for upgraded fog light performance in an OEM-like fit and finish.
The projector lens optic distributes a very flat and extremely wide pattern which is DOT and ECE standard compliant for road use.
Once installed we recommend that the beam is adjusted to ensure that it cuts off no higher than 50cm from the ground, with the car 25m away from a wall.
The STEDI™ Universal Fog Lights with DRL include mounting brackets that are compatible with all vehicles that feature Type A factory fog light housing.
Please Note:
Due to the assembly process, during initial operation a fogging may be visible. This is normal and should resolve within the first week as the light heats up and any moisture is released through the breather in the lights. If you have concerns regarding this, or if this persists for an extended time, please contact us at enquires@stedi.com.au for further assistance.
SPECIFICATIONS

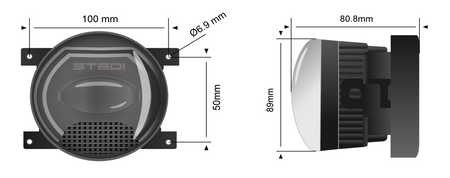

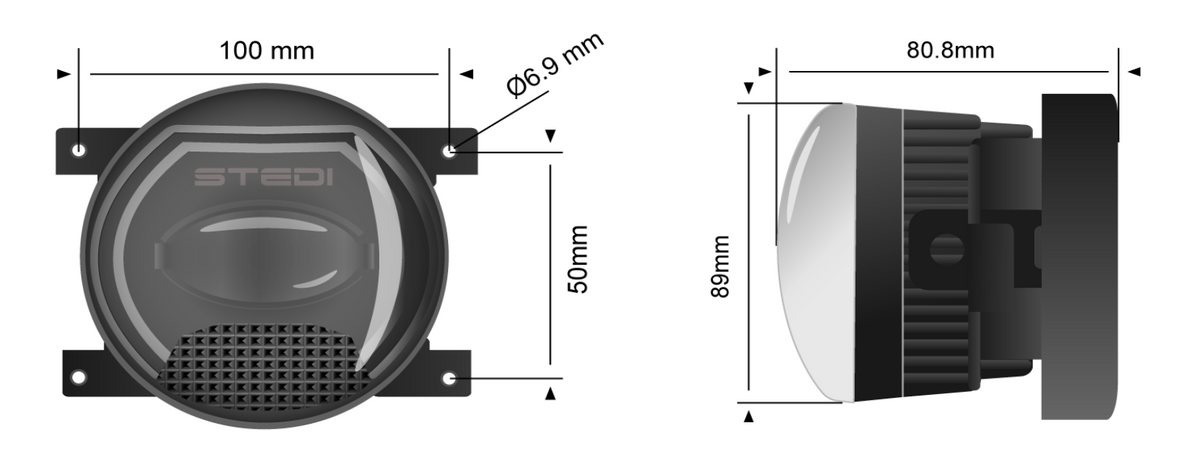

| Length (mm) | 115 |
| Width (mm) | 93 |
| Height (mm) | 80.8 |
| Weight (kg) | 1.05 |
| LED | High Intensity W1860TM2 |

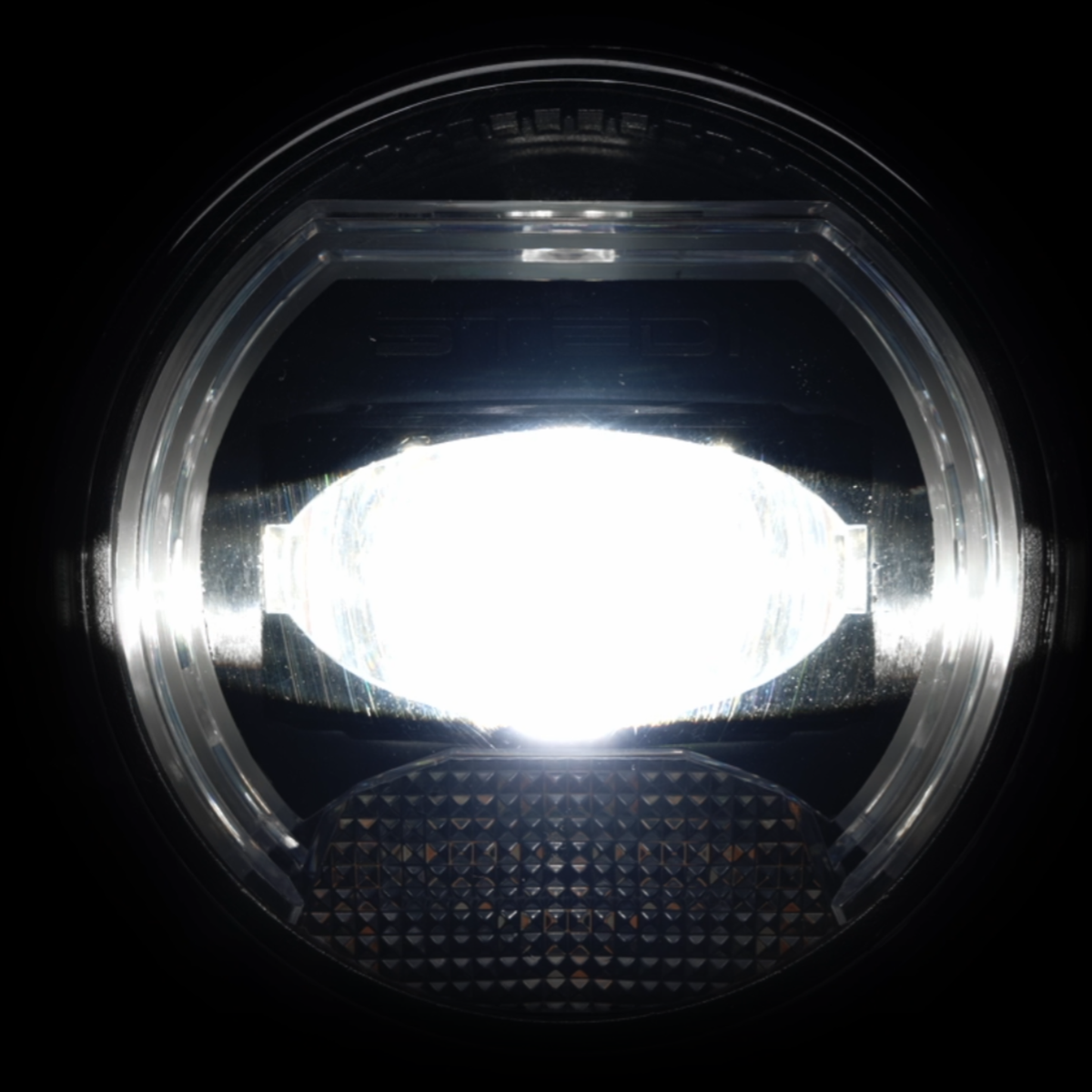

| Beam Pattern | Fog Beam |
| Tested Lumen (Single) | 730 |
| Tested Lumen (Pair) | 1460 |
| Ingress Protection | IP68 |
| Colour Temperature | 5000K |
| 1 LUX (Meters) | 104 |
| Candela | 11000 |
| Amp Draw | 1.35@13.2V |
| Power Draw | 17.8W@13.2V |
| Colour Temp (CCT) | 5000K |
| Voltage Compatibility | 10-36V |
| Operating Temperature | |
| Material/finishing | Cast Aluminium |

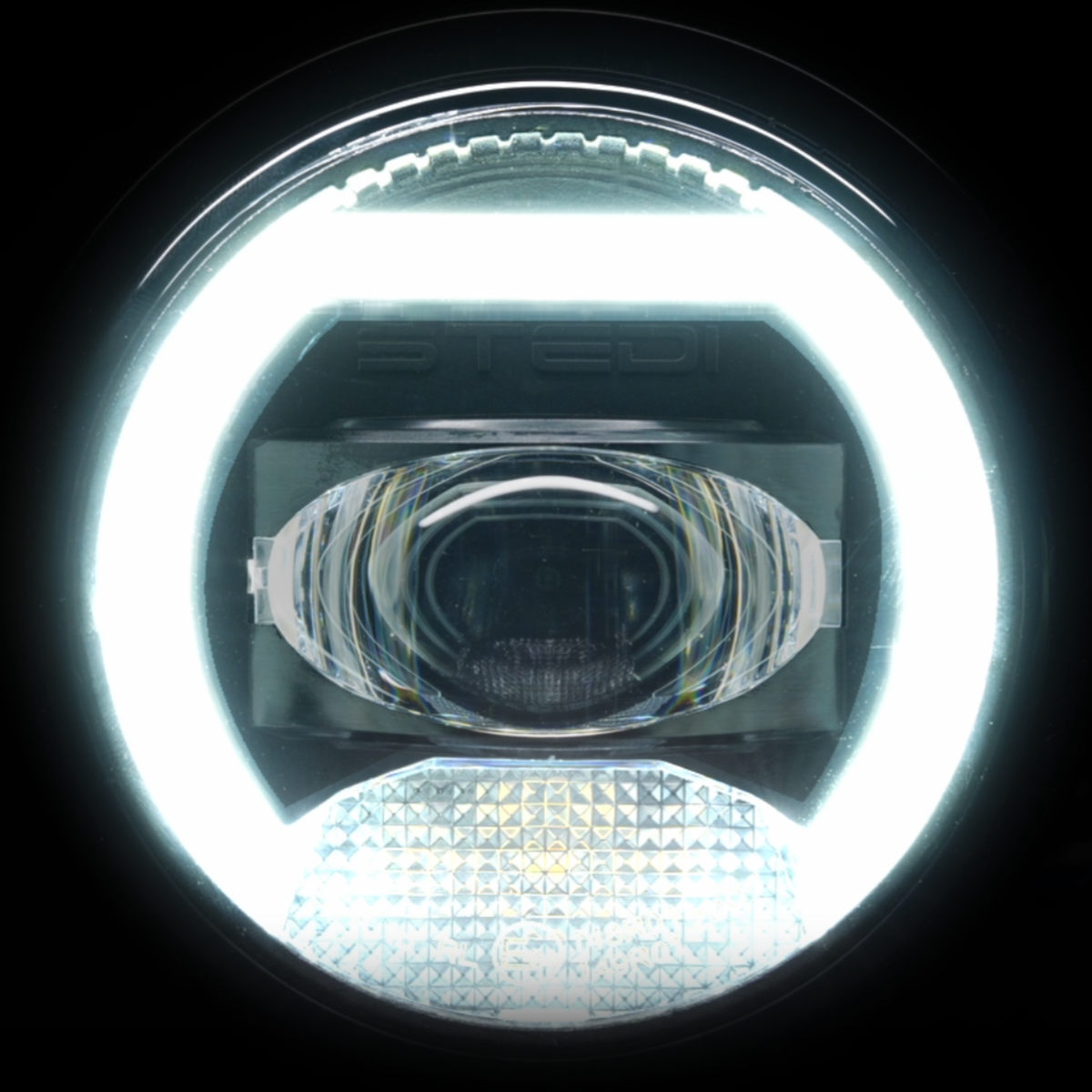

| Beam Pattern | DRL |
| Colour Temperature | White |
| Amp Draw | 1.3@13.2V |
| Voltage Compatibility | 10-36V |

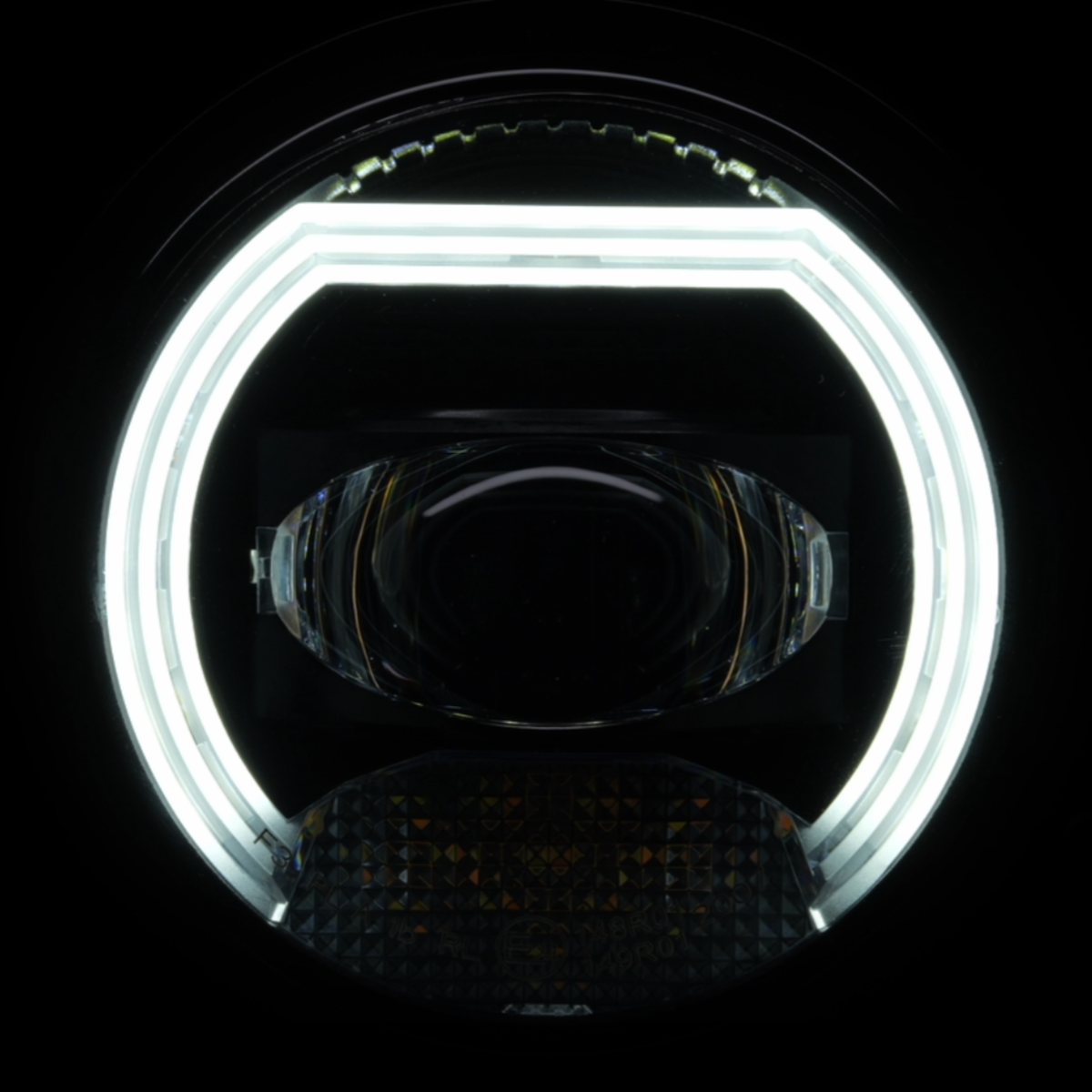

| Beam Pattern | Position List (Parker) |
| Colour Temperature | White |
| Amp Draw | 0.17@13.2V |
| Voltage Compatibility | 10-36V |

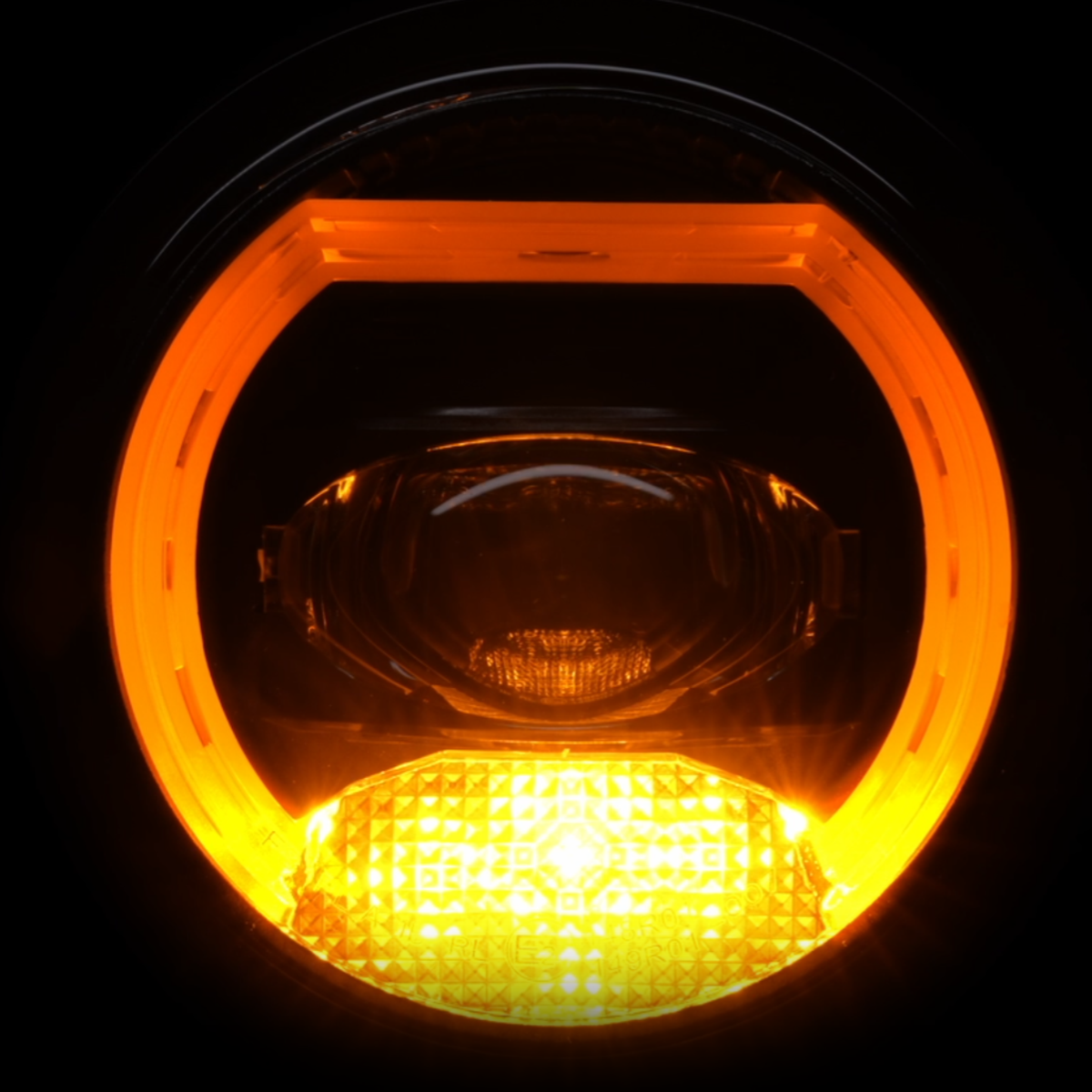

| Beam Pattern | Indicator (Turn Signal) |
| Colour Temperature | Amber |
| Amp Draw | 1.3@13.2V |
| Voltage Compatibility | 10-36V |
